Inleiding

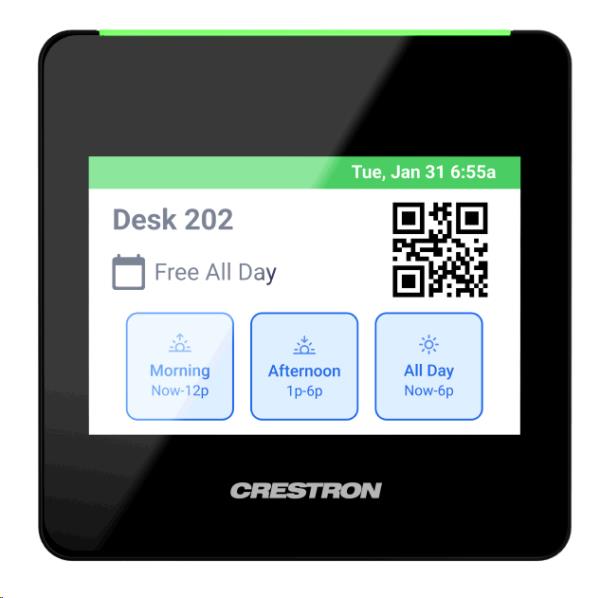

A compact touch screen that is designed to enhance and simplify desk scheduling across an enterprise. Can be installed within a hoteling space to provide a clear indication of its availability and schedule. Integrates seamlessly with a variety of popular scheduling services.

Specifications

Touch Screen Display
Display Type	Transflective LCD, backlit
Size	3.5 in. (89 mm) diagonal
Resolution	480 x 320 pixels
Controls and Indicators
Reset	Recessed push button on rear panel for hardware reset
Light Bar	RGB LED light bar; Supports alternating green/red indication of desk availability; Supports RGB color mixing
Graphics Engine
Onscreen keyboard, native desk scheduling application, setup and diagnostics via XiO Cloud, web browser, or on-screen UI
Languages
User Interface	English (US)
Memory
RAM	1 GB
Storage	8 GB SD Card
Wired Communications
Ethernet	100/1000 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP, IEEE 802.1X, SNMP, NTP, IPv4, HTTPS web browser setup, XiO Cloud client, IEEE 802.3at compliant
USB	USB 2.0 host
Wireless Communications
Transceiver	IEEE 802.11a/b/g/n/ac Wi-Fi communications (2.4 or 5 GHz 2-way RF), static IP or dynamic IP via DHCP
Security	64 and 128-bit WEP, WPA and WPA2 PSK with TKIP and AES
Range	Up to 45 ft (13.7 m) typical
Connectors
LAN PoE	8-pin RJ-45 connector, female, with 2 LED indicators; 100BASE-TX/1000BASE-T Ethernet port; Power over Ethernet (PoE) compliant; Green and yellow LEDs indicate Ethernet port status
24V 0.75A	2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2407WU model power pack
USB C	USB Type-C connector, female; USB 2.0 host port; For future use with supported Crestron accessories
Power
PoE (Power over Ethernet)	IEEE 802.3at Type 1 Class 3 (12.95 W) compliant, Compatible with IEEE 802.3af compliant Ethernet switch or third-party PoE compliant PSE
Power Pack	Input: 100–240VAC, 50/60 Hz; Output: 0.75A @ 24VDC; Model: PW-2407WU4
Power Consumption	3 W (typical)
Environmental
Temperature	32 to 104°F (0 to 40°C)
Humidity	10% to 90% RH (noncondensing)
