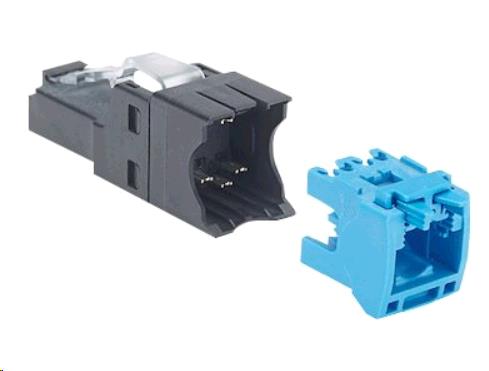

The TX6A Category 6A UTP Field Term RJ45 Plug is a simple-toattach plug for field termination of 4-pair unshielded twisted pair cable. Providing Category 6A performance the TX6A plug is also compatible with Category 6 systems. The two-piece TX6A plug terminates 4-pair,22 - 26 AWG,100 ohm unshielded twisted pair cable and uses proven TG-style forward motion termination technology to optimize performance by maintaining cable pair geometry while eliminating conductor untwist.

Features

• Simple two-piece assembly
• Slim plug profile
• 22-26 AWG termination capable
• TG-style termination technology
• Re-termination
• Compact termination tool

Specifications

General
Network Cable Type	Network connector - CAT 6a - IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt
Features	Phosphor bronze connectors,PoE ready
Colour	Blue
Connectivity
Connector	Field Term RJ45 - plug
Miscellaneous
Compliant Standards	UL 1863,FCC Part 68,UL 2043,IEC 60603-7,RoHS,ISO/IEC 11801:Class Ea,ANSI/TIA-1096-A,IEC 60529,ANSI/TIA/EIA 568-C.2
Environmental Parameters
Min Operating Temperature	-10 °C
Max Operating Temperature	60 °C
