Inleiding

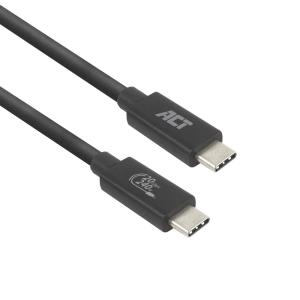

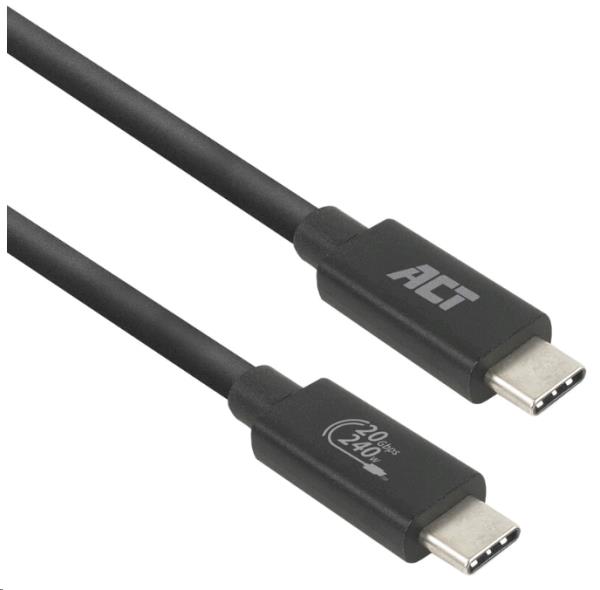

The AC7432 is an official USB-IF certified USB-C cable that supports the USB4® protocol. The USB4® cable can reach a maximum data transfer speed up to 20Gbps and can handle 240W power because of the Extended Power Range. The AC7432 supports a maximum resolution of 4K@60Hz. Backwards compatible with Thunderbolt™3, USB 3.2, USB 3.1, USB 3.0 and USB 2.0.

Fast data, high power and video via ONE USB4® cable
The AC7432 includes an intelligent e-marker chip. This chip communicates with the connected devices, such as a laptop or charger, whose features are accessed through the cable. The AC7432 can handle data, power and video.

USB4® 20Gbps
The AC7432 USB-C cable includes the USB4® technology. USB4® supports by default the Thunderbolt™3 protocol. The cable supports a maximum data transfer speed up to 20Gbps.

Power Delivery: Extended Power Range 240W
The EPR adds additional Power Delivery profiles, 28V, 36V and 48V, to the USB4® cable. The AC7432 includes the 48V profile that enables the cable to transfer a maximum power of 240W. As other cables with SPR (Standard Power Range) and without e-marker only can deliver 60W.

DisplayPort Alternate Mode protocol
The USB4® cable supports the DisplayPort Alternate Mode 1.4 (DP Alt Mode) protocol to distribute video over USB-C. The AC7432 supports a maximum resolution of 4K@60Hz monitor.

Officially USB-IF certified
The AC7432 is officially certified by the USB-IF corporation. The cable is tested to the highest standards by USB-IF. The official USB-IF logo can be found on the connector. ACT is member of the USB Implementers Forum, Inc.

Main Detail

Type

USB

Colour

Black

Length

2 m (6.56 ft)

Devices used to connect

Devices with Type-C USB connector,Devices with Type-C USB port,USB Hubs,Tablet PCs

Connectors SIDE A

SIDE A Connector 1

Interface	USB
Technology	USB-C
Port type	Male
No of connectors	1

Connectors SIDE B

SIDE B Connector 1

Interface	USB
Technology	USB-C
Port type	Male
No of connectors	1

Certificates

Green Compliant

Yes
