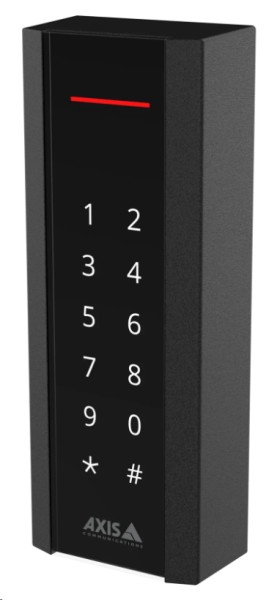

Compact, scalable keypad reader for secure access control
This compact network keypad reader provides a complete interface to control one door in a sleek, IP-powered design. It enables secure multi-factor authentication and installs fast with a single PoE cable-saving, time, cost and cabling.

Features

• Complete interface for one door powered by IP
• Intuitive touch keypad
• Mullion-mount design for easy installation
• Fully integrated within Axis end-to-end solutions
• Supports RFID cards and fobs

Specifications

Reader protocol	IP
Credential technologies	MIFARE Classic, MIFARE DESFire EV1, MIFARE DESFire EV2, MIFARE DESFire EV3, MIFARE Plus
Credentials	CardNr, PIN, Tag
Integrated keypad	Yes
DC input voltage	12-12 V
Power over Ethernet	Yes
DC Output - Max	12
Cable (length)	2900 mm
IP rating	IP54
Alarm inputs/outputs	2/0
Relays	1
Height	133 mm
Width	50 mm
Depth/length	27 mm
Weight of sales unit (without box)	270g
Safety approvals	EN: 62311, IEC/EN 62368-1 ed.3
Product label markings	CE, FCC, ICES
Sustainability	-
Operating temperature	-40 to 60 °C
