Inleiding

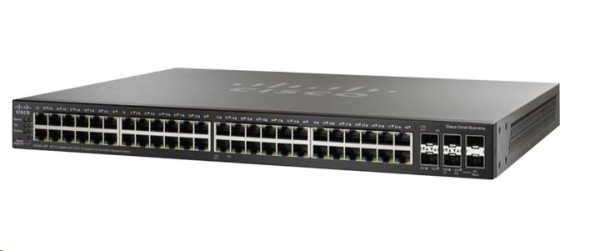

Cisco SG350X series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that require separate administration and troubleshooting, the Cisco SG350X series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network. A true stack delivers a unified data and control plane, in addition to a management plane, providing flexibility, scalability, and ease of use because the stack of units operates as a single entity.

General

Model

SG350X-48PV

Type

Fixed Port

Technical Features

Port Count

48

Other Ports

4

Management

Fully Managed

Routing/Switching

Layer 3

Uplink Speed/Media

10/100/1000 Copper

High Availability

Stacking

Management Features

MAC Address Table Size:16K entries

Routing/Switching Capacity

Switching capacity (64-byte packet size): 178.56 Mpps
Switching capacity: 240 Gbps

Features

PoE+

Ports/Interfaces

RJ-45,sfp+

LEDs

link,Speed,System

Form Factor

Mounting

Rack

Height Factor

1U

Power and Operating Requirements

Input Voltage

AC 120/230 V (47 - 63 Hz)

Dimensions and Weight

Width

44 cm (17.32 inches)

Height

4.4 cm (1.73 inches)

Depth

35 cm (13.78 inches)

Weight

5.95 kg (13.12 lb)
