Inleiding

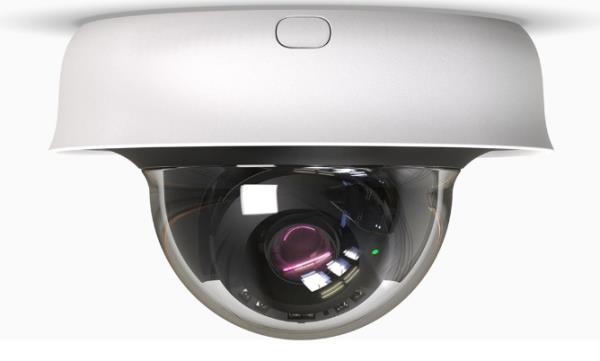

The Cisco Meraki MV73X is a network surveillance camera designed for outdoor use, offering a set of features that enhance security management. With an IP67 rating, this camera is weatherproof and can operate in extreme temperatures ranging from -40°C to 50°C. Equipped with a CMOS optical sensor, it captures high-resolution video in both 1080p and 4K, allowing for detailed monitoring. A vari-focal lens system provides a wide angular field of view, effectively covering large areas while ensuring image clarity.
This camera is equipped with intelligent object detection and motion detection algorithms that help optimize surveillance efficiency. Its cloud-augmented functionality enables remote access and management, ensuring users can monitor their premises from anywhere. Additionally, the built-in four microphones deliver clear audio support, and the device features secure encryption algorithms for safeguarding data. The MV73X is more than just a camera; it is a security solution that integrates into an IoT ecosystem while ensuring compliance with standards.

Features

• Operates reliably in extreme temperatures from -40°C to 50°C
• Captures high-resolution video in both 1080p and 4K formats
• Features intelligent object and motion detection capabilities
• Offers secure cloud communications and data encryption
• Includes built-in audio support with four microphones

Specifications

General

Height	10.3 cm
Weight	1.48 kg
Connectivity Technology	Wireless, wired
Form Factor	Dome
Device Type	Network surveillance camera
Audio Support	Yes: built-in four microphones
Width	16.639 cm
Depth	16.639 cm
Camera Mount Type	Ceiling mount, wall mount, corner mount, pole mount

Expansion / Connectivity

Ports	LAN/power - RJ-45
Encryption Algorithm	WPA3-Personal, 256-bit AES, TLS, WPA, WPA2-PSK, WPA2-Enterprise, EAP-TTLS, TKIP

Miscellaneous

Included Accessories	Wall mount kit
Compliant Standards	802.3at, IP67, NDAA, IK10+

Power

Power Requirements

DC 12 V / PoE

Environmental Parameters

Max Operating Temperature	50 °C
Min Operating Temperature	-40 °C

Camera

Infrared LEDs	Yes
Motion Detection	Yes
Infrared Distance	30 m
Flash Memory	1 TB
Digital Video Format	H.264
Max Digital Video Resolution	3840 x 2160
Type	Colour - Day&Night - fixed - outdoor
Video Modes	1080p, 4K
Exposure Range	1/30 sec - 1/32000 sec
Video Capture	3840 x 2160 @ 15 fps 2560 x 1440 @ 24 fps 1920 x 1080 @ 24 fps
Features	High Dynamic Range (HDR), cloud-augmented, Live Streaming, attribute search, Object Detection, object classification, People Detection, Vehicle Detection, secure boot, signed firmware, reset button, LED indicator, heater, Smart Codec, Motion Heatmaps, Motion Recap, Motion Search, up to 256 QAM, integrated omnidirectional aerials

Lens Construction

Optical Zoom	3 x
Lens Iris	F/1.6-2.9
Type	Vari-focal
Focal Length	3 mm - 9 mm
Horizontal Field of View (degree)	36 - 112

Image Sensor

Type	8,410,000 pixels Progressive Scan CMOS 1/2.8"

Interfaces

Network Protocols	DSCP
Network Interface	IEEE 802.11b, IEEE 802.11g, Ethernet 10Base-T/100Base-TX/1000Base-T, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac

Internet of Things (IoT)

Internet of Things (IoT) Compatible	Yes
Communications Type	Cloud
