Inleiding

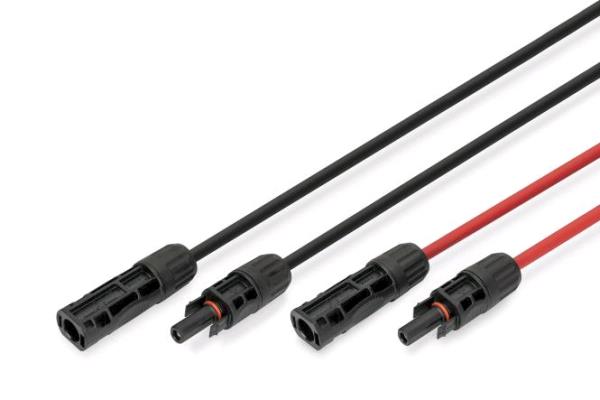

This high-quality solar cable for extension with pre-assembled MC4 connectors at both ends has been specially developed for use in photovoltaic systems. With a conductor cross-section of 4 mm, a length of 3 m and a dielectric strength of up to 1500 V DC, it is ideal for connecting solar modules, inverters or other PV components. The cable consists of a tinned copper conductor, which ensures optimum current transmission and reliable corrosion protection. The resistant XLPO insulation and robust PA66 jacket offer

Specifications

Length	1m
Conductor cross-section	6mm
Voltage tolerance	up to 1500V DC / 1000V AC
Rated current	30 A
Conductor material	Tinned copper wire
Conductor structure	TS 84/0.285 mm
Conductor diameter	3.0mm
Jacket material	XLPO
Insulation diameter	4.4 mm ±0.1 mm
Outer diameter	6.1 mm ±0.2 mm
Temperature range	-40 °C to +85 °C
Contact resistance	≤0.5Ω
Connection 1	MC4 plug
Connection 2	MC4 socket
