Inleiding

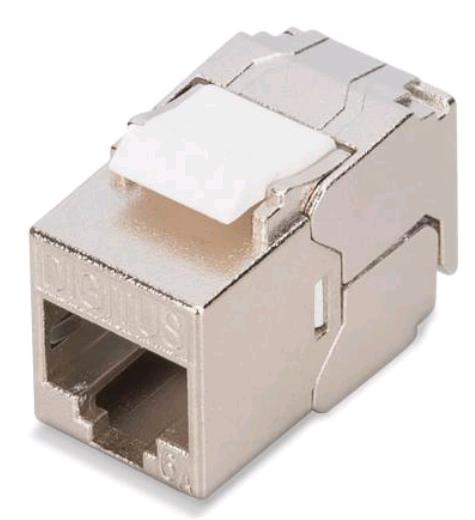

The shielded CAT 6A short keystone module DN-93615-S from DIGITUS® impresses with its future-oriented standards and high-end quality for your network. The compact design allows a series installation in 483 mm (19") 1U panels.
The tool-free installation is carried out via LSA strips, color-coded according to EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes.

Features

• 360° shield contacting
• Suitable for field assembly (tool-free installation)
• Design-compatible - suitable for mounting in distribution panels and junction boxes
• CAT 6A with LSA insulation displacement connectors
• Dust protection cap for RJ45 socket
• Supported PoE standards: IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)

Specifications

General
Construction type	Flat
Product colour	Silver
Connector 1	RJ-45
Connector 1 gender	Female
Cabling technology	10GBase-T
Connector contacts plating	Nickel/Gold
Cable types supported	Cat6a
Housing material	Zinc
AWG wire size	22/1
Magnetically shielded	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Operational conditions
Operating temperature (T-T)	-20 - 70 °C
Weight & dimensions
Weight	22 g
