Inleiding

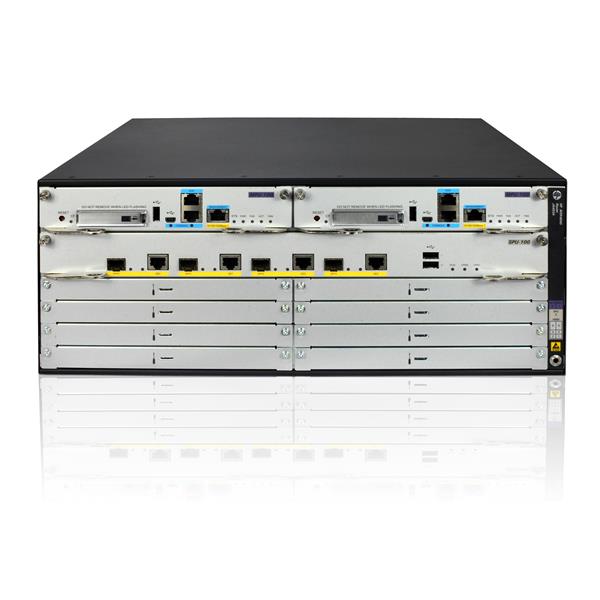

The HP MSR4000 Router Series is a family of high-performance, large branch routers that deliver integrated routing, switching, security, VPN, and SIP in a single box. With its integrated infrastructure and modular design, the MSR4000 reduces complexity and simplifies your network while enabling faster time to service and enhanced performance.

The MSR4000 increases flexibility and agility by delivering support for a wide range of virtualized applications on the Open Application Platform module. Its distributed architecture and high reliability also strengthen the resiliency of large branches.

Beveiliging

MAC-adrestabel

1000000 entries

Ondersteunde beveiligingsalgoritmen

3DES,128-bit AES,192-bit AES,256-bit AES,DES,MD5,SHA-1

Firewall

Ja

ARP-aanvalspreventie

Ja

ICMP-aanvalspreventie

Ja

Access Control List (ACL)

Ja

Kenmerken

Type processor

Ja

Frequentie van processor

1000 MHz

Flash memory

512 MB

Intern geheugen

2000 MB

Intern geheugentype

DDR3

Warmtedissipatie

347 BTU/h

Poorten & interfaces

Aansluitingen

(8) HMIM slots, (2) MPU (main processing unit) and 1 SPU (service processing unit) slots Maximum, depending on model and configuration

Aantal Ethernet LAN (RJ-45)-poorten

6

Aantal MPU-sleuven

2

Overige specificaties

Geheugen en processor

: MPU-100, 2 cores RISC @ 1 GHz, 512 MB flash capacity, 2 GB DDR3 SDRAM : SPU-100, 8 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM : SPU-200, 16 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM

Prestatiebeheer

IMC - Intelligent Management Center; command-line interface; limited command-line interface; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; modem interface; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB

Montage

Desktop or can be mounted in a EIA-standard 19 in. telco rack when used with the rack-mount kit in the package

Gewicht (imperiaal)

20,6 kg (45.5 lbs)

Afmetingen (B x D x H) (Brits)

439,9 x 480,1 x 175 mm (17.3 x 18.9 x 6.89")

Draadloze functies

Uses USB memory disk to download and upload configuration or OS image files; supports an external USB 3G/4G modem for a 3G/4G WAN uplink

Technische details

Code geharmoniseerd systeem (HS)

85176990

WAN-verbinding

Ethernet WAN

Ja

DSL WAN

Nee

SIM-kaartsleuf

Nee

3G/4G USB modem compatibiliteit

Ja

Netwerk

Netwerkstandaard

IEEE 802.1D,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3

Ethernet interface type

Gigabit Ethernet

Ethernet LAN, data-overdrachtsnelheden

10,100,1000 Mbit/s

Verzending snelheid

36 Mpps

VLAN=ondersteuning

Ja

Multicast-ondersteuning

Ja

Verkeerscontrole

Ja

Port forwarding

Ja

Auto MDI/MDI-X

Ja

Mobiel netwerken

Generatie mobiel internet

3G, 4G

4G standaard

LTE

Beheerfuncties

Web-gebaseerd management

Nee

Quality of Service (QoS)

Ja

Protocollen

Routing protocols

RIP-1,RIP-2

DHCP client

Ja

DHCP server

Ja

IPv4- & IPv6-functies

IPv4/IPv6 access-control list (ACL)

Design

Kleur van het product

Zwart, Zilver

Rack-montage

Ja

Rackcapaciteit

4U

Energie

Stroomverbruik (typisch)

300 W

AC-ingangsspanning

100 - 240 V

AC-ingangsfrequentie

50/60 Hz

Power over Ethernet (PoE)

Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)

40 - 70 °C

Relatieve vochtigheid in bedrijf (V-V)

5 - 90 procent

Gewicht en omvang

Breedte

440 mm

Diepte

480 mm

Hoogte

175 mm

Gewicht

20,6 kg
