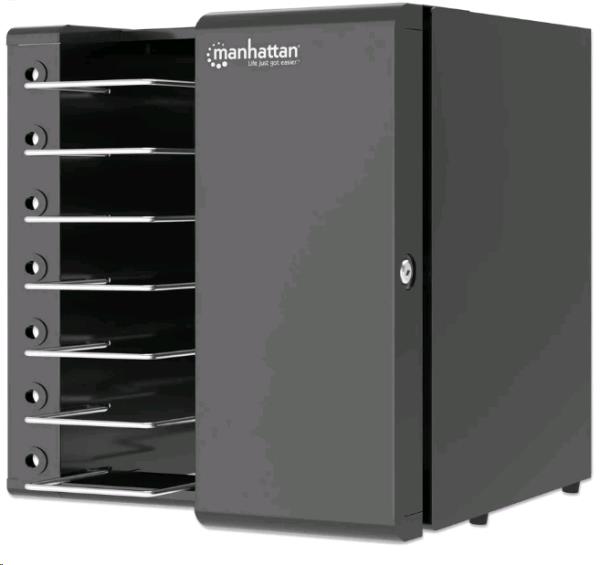

The Manhattan EU 7-Bay AC Desktop Charging Cabinet is the ideal solution for safely storing and powering notebooks, tablets, Chromebooks, MacBooks®, iPads® and other devices up to 16". Designed for offices, coworking spaces, IT environments, and lounges, it delivers reliable charging and physical device protection in a compact, robust housing.

Package Includes

• EU 7-Bay AC Desktop Charging Cabinet
• EU power cable, 2.6 m
• Two door keys
• Wall-mounting hardware: three M8x80mm screws
• 14 cable ties
• Grounding cable
• Documentation

Features

• Safely stores and charges laptops, tablets, iPads®, MacBooks®, Chromebooks, and other devices up to 16"
• Seven EU CEE 7/3 AC outlets in a PDU mounted in the side compartment
• 250 joule surge protection against overload, overcurrent, short circuit, and voltage spikes
• Lockable hinged cover opens to the side for device access and secures with included keys
• Sturdy powder-coated metal housing with open design ensures high airflow without the need for a fan
• Side door with key lock for access to electronics and charging connections
• Seven spacious device slots, 402 (D) x 290 (W) x 50 (H) mm each, with cable management built into the dividers
• Built-in wall-mounting holes on the back to install the cabinet, save space and prevent theft - all mounting hardware included
• Includes 14 cable ties for securely fastening laptop power supplies in the side compartment, keeping each PSU aligned at the correct height for its corresponding device
• Round edges to avoid injuries in busy environments
• Rubber feet for non-slip desktop use
• Built-in 2.6 m power cord with universal CEE 7/7 hybrid plug fits both European type F and French type E sockets
• Earthing kit included to protect equipment from external electrical surges
• For indoor use only
• Not stackable

Specifications

Standards and Certifications

• CE
• RoHS
• REACH
• IEC 60320
• IEC 60884

Electrical

• AC input: 100.0 - 240.0 V; 50 - 60 Hz
• Operating voltage: 230.0 V
• Maximum load: 3,840.0 W
• Load current: 16.0 A max.
• Surge protection: AC suppression with 250 joules

Physical

• Materials: cold-rolled, powder-coated steel and flame retardant ABS plastic
• External unit dimensions (D x W x H): 410 x 363 x 404 mm
• Internal device bay dimensions (D x W x H) (7): 402 x 290 x 50 mm
• Plug standard: EU CEE 7/7 (Type E/F); IEC 60320
• Socket/outlet standard: EU CEE 7/3 (Type F); IEC 60884
• AC power cable length: 2.6 m
• Cable type: H05VV-F 3G 1.5 mm²
• Net weight: 13 kg
• Gross weight: 14.8 kg
