Inleiding

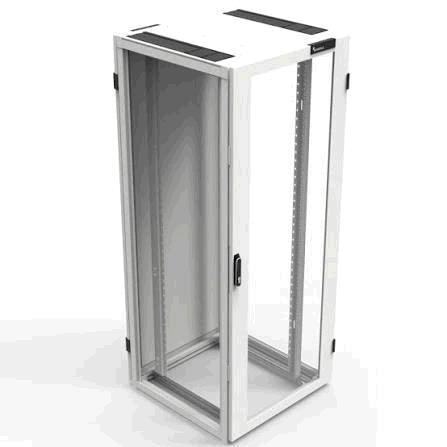

The 19inches server cabinet features 80% perforated front and double rear doors for optimal airflow. Its robust design ensures high load capacity and efficient cooling, making it ideal for demanding server environments.

Features

• 42U server cabinet with 600mm width and 1200mm depth, compliant with 19inches rack standards for high-density network/server deployments.
• Advanced airflow management package with 80% perforated steel front and double rear doors, minimizing air loss and enhancing energy efficiency; doors feature Fix-easy swivel handle with EK333 locking for security and open 165° (bayed) or 260° (stand-alone).
• Lightweight, robust, and demountable aluminum frame supports up to 1500kg static load, ensuring structural integrity for heavy IT equipment.
• Equipped with 4x 19inches profiles with height indication; threaded mounting rails in width, depth, and height directions enable stepless adjustability for flexible cable management.
• Powder-coated black finish (RAL 9005), IP20 protection against solid objects >12.5mm, IK07 impact resistance, and operating temperature range -10°C to 55°C for reliable performance in demanding environments.

Specifications

Mounting level	Front and rear
Type of profile rail	Crank
Number of doors	2
Type of ventilation	Passive
Number of height units	42
Max. load capacity	1500 kg
With roof plate	Yes
With earthing	Yes
With front door	Yes
Material front door	Steel
Front door locking system	2-point
With rear door	Yes
Material rear door	Steel
Rear door locking system	2-point
Material	Aluminium
Surface finishing	Powder coating
Colour	White
Model	With permanent frame
