Inleiding

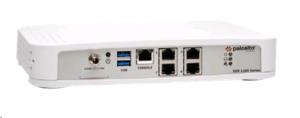

Prisma SD-WAN ION 1200 is a next generation software defined enterprise branch device integrated with 4G or 5G cellular network access. With the introduction of ION 1200, accelerate your SASE deployment to branch offices by leveraging 4G or 5G connectivity without installing additional hardware in the branch. Use the 4G or 5G network as the primary WAN connectivity to enable rapid deployment of ATMs or kiosk systems or as a secondary backup link to improve the resilience of the branch WAN.

Features

• High Availability and firewall protection for enhanced network security
• Supports Ethernet, Fast Ethernet, and Gigabit Ethernet for flexible connectivity
• Zero-Touch Deployment and Zero-touch provisioning (ZTP) for easy setup
• 250 Mbps maximum throughput for efficient data handling
• Fanless design for silent operation and reduced power consumption

Specifications

General

Width	24.2 cm
Depth	16.3 cm
Weight	1.6 kg
Height	4.39 cm
Device Type	Application accelerator
Built-in Devices	32GB eMMC

Expansion / Connectivity

Interfaces

4 x 1000Base-T - RJ-45 2 x USB 3.0 - Type A 1 x console - RJ-45

Networking

Form Factor	External
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Connectivity Technology	Wired
Encryption Algorithm	FIPS 140-2
Performance	Maximum throughput: 250 Mbps
Status Indicators	Port transmission speed, power, link/activity, OS status, controller
Features	Firewall protection, MPLS support, High Availability, wall mountable, fanless, Zero-touch provisioning (ZTP), SD-WAN support, Zero-Touch Deployment

Miscellaneous

Compliant Standards

FCC, RoHS, cTUVus, IEC 62368-1

Power

Power Provided	25 Watt
Power Device	External power adapter
Voltage Required	AC 100-240 V (50/60 Hz)

Environmental Parameters

Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	10 - 90% (non-condensing)

Processor / Memory / Storage

RAM

4 GB
