Inleiding

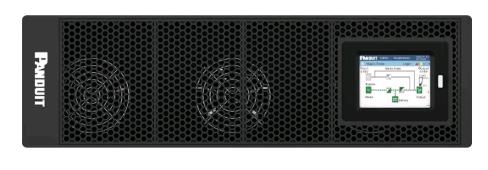

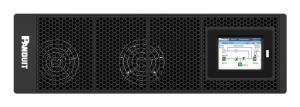

Discover reliability and efficiency with the Panduit SmartZone UPS, a solution for uninterrupted power supply technology. Designed to meet the demands of today's power environments, this UPS offers high efficiency, robust battery backup, and comprehensive connectivity options. With an impressive efficiency of up to 98% in Eco mode, it ensures your critical devices are protected during power outages and contributes to lower energy costs. The maintenance-free, valve-regulated lead acid batteries provide peace of mind, offering up to 18 minutes of run time at full load.
Advanced connectivity features, including management via USB, RS-232, and Ethernet, allow for seamless integration and monitoring of your power infrastructure. Safety is paramount, with the UPS featuring Automatic Voltage Regulation (AVR), overcharge, overdischarge, and overheat protection among others, ensuring your equipment is safeguarded against a wide array of power disturbances. Its rack-mountable design, complemented by hot-swappable batteries and an included mounting kit, makes installation and maintenance straightforward, fitting seamlessly into your existing setup. Choose the Panduit SmartZone UPS for a reliable, efficient, and easily integrated power management solution.

Features

• 95.5% efficiency in online mode and 98% in Eco mode for energy savings
• 18 min run time at full load with maintenance-free lead acid batteries
• Multiple management interfaces including USB, RS-232, and Ethernet
• Automatic Voltage Regulation (AVR) and comprehensive protection features
• Rack-mountable design with hot-swappable batteries for easy maintenance

Specifications

General

Colour	Black
Localisation	EMEA
Height (Rack Units)	7U
Device Type	UPS - Power Factor Correction (PFC) - rack-mountable / external

Expansion / Connectivity

Expansion Slots	1 (total) / 0 (free) x Intelligent Slot
Interfaces	1 x management (USB) 1 x management (RS-232) 1 x EPO (emergency power off) 1 x management (Ethernet) - RJ-45 1 x sensor - RS-485

Manufacturer Warranty

Service & Support

Limited warranty - 3 years Limited warranty - batteries - 2 years

Networking

Remote Management Protocol	SNMP 3
Remote Management Interface	Ethernet, RS-232, USB

Miscellaneous

Rack Mounting Kit	Included
Features	Emergency power off, LCD display, overheat protection, internal bypass, Automatic Voltage Regulation (AVR), overcharge protection, overload protection, cold-start function, short-circuit protection, hot-swappable batteries, low voltage protection, overdischarge protection, double conversion
Compliant Standards	UL, RoHS, REACH, IP20, EN 62040-1:2008+A1:2013, ISTA 2B, IEC 62040-1:2013, BS 62040-1-2013, IEC 62040-2-2016, EN 62040-2-2018, BS 62040-2-2018, Energy Star 2.0

Software / System Requirements

Software Included

SmartZone Cloud, SmartZone mPower

Environmental Parameters

Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Sound Emission	58 dB
Humidity Range Operating	0 - 95% RH (non-condensing)

Battery

Quantity	40
Technology	Lead Acid
Recharge Time	4 hour(s)
Transfer Time	0 ms
Features	Maintenance free, valve-regulated
Voltage Provided	DC 480 V
Run Time (Up To)	18 min at full load 36 min at half load

Power Device

Power Factor (PF)	1.0
Frequency Provided	50/60 Hz
Output Waveform	Sinewave
UPS Technology	On-line
Dataline Surge Protection	Network - RJ-45
Frequency Required	40 - 70 Hz
Input Wiring	3-phase
Input Voltage	AC 380-415 V
Output Voltage	AC 220/230/240 V 50/60 Hz
Power Capacity	15000 Watt / 15000 VA
Input Connectors	1 x hardwire 5-wire (3PH + N + PE)
Power Output Connectors Details	1 x hardwire 5-wire (3PH + N + PE) 1 x hardwire 3-wire (L + N + G)
Input Voltage Range	AC 305-485 / 138-485 V
Efficiency	98% Eco mode, 95.5% online mode

Dimensions & Weight

Height	30.6 cm
Weight	180 kg
Width	88.3 cm
Depth	155.6 cm

Dimensions & Weight (Shipping)

Shipping Width	77 cm
Shipping Depth	106 cm
Shipping Weight	220 kg
Shipping Height	73.4 cm

Sustainability Information

ENERGY STAR

Yes
