Inleiding

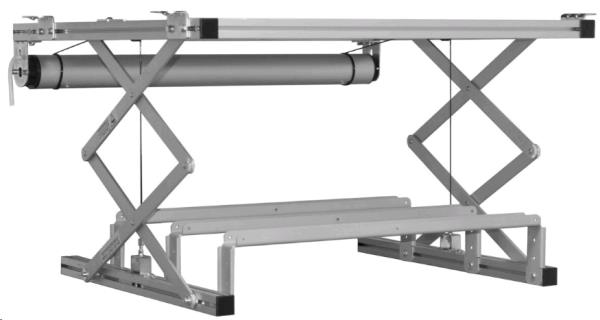

The PPL 2040 projector lift system is the perfect solution for the integration of a large and heavy projector into a ceiling where an aesthetical solution is required. Not only is the projector neatly hidden, it is also theft delaying. The lifts runs silently and offers two adjustable positions: top and show.
"This lift has been developed to be installed inside a false ceiling where very few space is available. Inside the false ceiling only a minimum height of 14 cm is required to install lift and projector. The motor allows a drop of 40 cm. The maximum weight capacity of the projector lift is 30 kg. The PPL 2040 is supplied with extendable side brackets in order to position the ceiling tile exactly in the ceiling tile grid. The lift is equipped with two safety screws that prevent the lift to extent further to the preset end stop. "

Specifications

• Colour : Silver
• Min. distance to ceiling (mm) : 140
• Max. distance to ceiling (mm) : 540
• Max. weight load (kg) : 30
• Max. weight load (lbs) : 66.14
• Average power consumption (W) : 184
